Crane hooks and suspensions



LLC "Techprommetsnab" supplies all types of crane hooks and suspensions according to the current technical standards. The quality of the products supplied by LLC "Techprommetsnab" has proven itself at the enterprises of the Republic of Belarus and abroad.

Crane hook is one of the most common types of lifting mechanism, which is used for lifting and moving loads in combination with a crane-type lifting device. It finds its application in many types of lifting machines and mechanisms with manual and machine drive. Crane hooks are classified according to the highest load capacity and are characterized by high strength and reliability, thanks to which they are used with great success in a wide variety of industries.

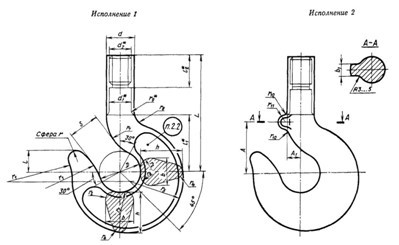

ONE-HORNED CRANE HOOKS

They are used to equip lifting machines and mechanisms. They are manufactured by hot stamping (GS) and free forging (SC) in accordance with GOST 6627-74. It is possible to supply hooks, both in the form of blanks and with pre-machining. Hook type A differs from hook type B in size L.

№ hook blank	Load capacity, tons. In accordance with GOST 25835-83		D	S	L		A	b	l	L1	h	Weight, kg no more
		before 4М	5М-6М	Nomin	Nomin	Type А	Type B		Nomin		No more	Nomin	Type А
1	0,32	0,25	20	14	65	80	26	12	10	30	18	0,18	0,2
2	0,40	0,32	22	16	70	90	28	13	10	32	21	0,22	0,25
3	0,50	0,40	25	18	75	100	31	15	12	35	24	0,35	0,4
4	0,63	0,50	30	22	85	110	35	18	15	40	26	0,5	0,6
5	0,80	0,63	32	24	90	120	38	20	16	45	28	0,6	0,7
6	1,00	0,80	36	26	105	130	42	22	18	50	32	0,9	1
7	1,25	1,00	40	30	120	140	48	24	20	55	36	1,3	1,5
8	1,60	1,25	45	33	130	160	56	26	22	65	40	1,7	1,9
9	2,00	1,60	50	36	145	180	60	30	25	70	45	2,6	2,9
10	2,50	2,00	55	40	165	220	65	34	30	85	52	3,6	4,1
11	3,20	2,50	60	45	180	300	78	38	34	90	55	4,5	5,7
12	4,00	3,20	65	50	195	375	82	40	36	95	65	6,45	8,9
13	5,00	4,00	75	55	250	410	92	48	38	105	75	9,6	12,2
14	6,30	5,00	85	65	280	475	105	54	42	120	82	13,5	17,7
15	8,00	6,30	95	75	310	520	-	60	46	135	90	18	23
16	10,00	8,00	110	85	340	580	-	65	55	150	100	26	33
17	12,50	10,00	120	90	415	600	-	75	60	165	115	37	44,5
18	16,00	12,50	130	100	440	630	-	80	62	180	130	49,5	56
19	20,00	16,00	150	115	480	660	-	90	75	210	150	70	82,5
20	25,00	20,00	170	130	535	730	-	102	80	230	164	102	121
21	32,00	25,00	190	145	580	800	-	115	95	260	184	130	150
22	40,00	32,00	210	160	675	960	-	130	100	280	205	175	206
23	50,00	40,00	240	180	730	1050	-	150	120	330	240	262	312
24	63,00	50,00	270	205	820	1100	-	165	135	360	260	353	400
25	80,00	63,00	300	230	840	1200	-	190	150	400	290	520	600
26	100,0	80,00	320	250	860	1300	-	200	160	440	320	585	695

You can find out more detailed information about the sizes of single-horned crane hooks and their characteristics by contacting our specialists.

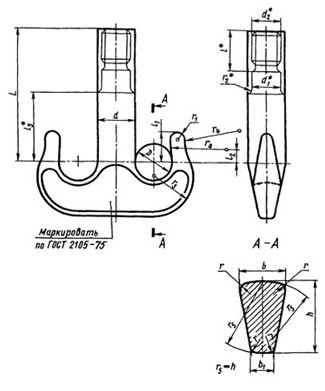

TWO-HORNED CRANE HOOKS



They are used to equip lifting machines and mechanisms. They are manufactured by hot stamping (GS) and free forging (SC) in accordance with GOST 6627-74. It is possible to supply hooks, both in the form of blanks and with pre-machining. Hook type A differs from hook type B in size L.

Billet hook number	Load capacity, tons. In accordance with GOST 25835-83L and S		D	d	b	h	l		L1	L3	Weight, kg
			T and VT	Nomin	Nomin	Nomin	Nomin	Type  А			Type B
1	6,3	5,0	60	56	35	60	230	475	50	70	8	12
2	8,0	6,3	70	62	40	70	260	520	55	80	11	17
3	10,0	8,0	80	68	45	75	280	580	60	85	14	21
4	12,5	10,0	90	80	50	85	325	640	70	100	20	30
5	16,0	12,5	100	85	60	95	360	700	80	110	28	39
6	20,0	16,0	115	95	65	110	420	760	85	120	41	55
7	25,0	20,0	125	110	75	120	470	820	95	130	60	78
8	32,0	25,0	145	125	85	140	525	875	115	150	90	112
9	40,0	32,0	160	135	95	150	590	940	130	170	126	155
10	50,0	40,0	180	160	105	170	660	1000	140	180	159	206
11	63,0	50,0	200	170	115	180	725	1050	165	205	228	265
12	80,0	63,0	220	190	130	210	800	1150	180	220	302	357
13	100,0	80,0	250	200	150	235	860	1175	200	250	400	471
14	-	100,0	280	220	165	270	900	1200	210	260	530	620

You can find out more detailed information about the sizes of crane double-horned hooks and their characteristics by contacting our specialists.

CRANE PLATE HOOKS

The plate hook is a load-grabbing body used in lifting machines and mechanisms, made of individual elements (plates) cut from sheet steel. The connection of the crane hook plates is carried out by rivets. For a more uniform loading of plates, inserts made of mild steel are fixed in the mouth of the cargo hook. Plate hooks are more reliable in operation than forged ones, since simultaneous destruction of all plates is practically excluded, while they are simpler to manufacture.

Plate hooks are manufactured according to GOST 6619-75 of the following types:

1. Single-horned hooks with a lifting capacity of 40-315 tons.
2. Two-horned hooks with a lifting capacity of 80-320 tons.

SINGLE-HORNED PLATE HOOKS

One-horned hooks are used in the foundry and are used in conjunction with a traverse. Two-horned plate hooks are used on general-purpose cranes, large-diameter slings on two horns are much easier to place.

Hook number	Load capacity, tons. In accordance with GOST 25835-83 5M-6M	D	H	B	B1	L	L1	L2	Hook weight not more than, kg
2	50	280	2710	1070	160	40	560	1900	1600
3	70	350	3115	1200	160	40	615	2200	1970
4	90	390	3360	1360	180	50	710	2300	2800
5	100	400	3515	1420	190	50	735	2420	3300
6	115	420	3745	1500	200	50	775	2600	4020
7	140	430	4135	1700	200	60	925	2800	4960
8	160	450	4435	1880	200	60	975	3000	6100
9	180	470	4620	1900	240	70	1000	3150	7470
10	200	470	4935	2060	240	75	1070	3350	8700
11	225	500	5200	2180	250	80	1150	3500	10220
12	250	530	5485	2370	250	85	1220	3650	11900
13	280	560	5685	2500	275	90	1300	3750	14300
14	315	700	6080	2720	300	100	1400	4000	17700

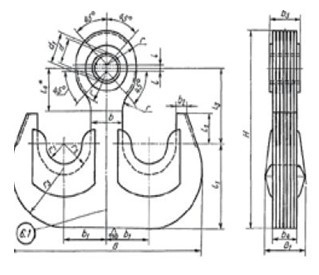

TWO-HORNED PLATE HOOKS

Two-horned plate hooks designed for general purpose cranes are manufactured with a lifting capacity from 80 to 320 tons. Plate hooks are easier to manufacture forged and more reliable, since the destruction of the plates does not occur simultaneously, but they are heavier than forged ones. To increase the service life, the throat of plate hooks is protected by special plates made of "soft" steel, which can be changed as they wear out. Two-horned plate hooks are manufactured in numbers from 1 to 7, they have a height from 1170 to 2330 mm and a weight of 1060 and 5600 kg, respectively.

Номер крюка	Load capacity, tons. In accordance with GOST 25835-83 Up to 4M5M – 6M		B	B1	H	b3	d	L1	L2	L3	r1	Hook weight not more than, kg
2	100	80	1300	270	1300	170	160	550	200	500	125	1230
3	125	100	1400	300	1410	200	180	600	200	540	150	1680
4	160	125	1500	320	1545	220	200	670	200	575	175	2150
5	200	160	1800	320	1830	220	220	820	250	665	200	3170
6	250	200	2000	345	2080	245	250	900	300	800	225	4200
7	320	250	2250	360	2330	260	300	1030	350	850	225	5600

For more information about the dimensions of plate hooks and their characteristics, you can find out by contacting our specialists.

Norms of production of crane hooks:

1. The crane hook should be withdrawn from use if cracks and hairlines are found on any part of it. The hook is also rejected in case of wear in the throat exceeding 10% of the original height of the section, as well as in case of damage to the thread on its tail part. Residual bending deformation in dangerous sections of the curved part of the hook and in places where it passes to the neck is unacceptable.

2. All parts of the hook attachment, in which cracks are detected by inspection or physical inspection methods, must be replaced. The axis (finger) of the traverse must be replaced if more than 3% of the nominal diameter is worn.

HOOK CRANE SUSPENSIONS

One of the main elements of the crane is a hook suspension, which serves to hang cargo on the crane's cargo rope. Crane suspension or hook suspension (hook cage) consists of movable bypass blocks and a cargo hook, interconnected by a traverse and cheeks.

Hook suspensions are distinguished by load capacity (depending on the mode of operation of the lifting mechanism), the number and location of blocks. Hooks designed for a load of more than 3 tons are mounted on thrust ball bearings that provide easy rotation of the hook at lower loads, hooks can be mounted on spherical sliding supports.
LLC "Techprommetsnab" supplies crane suspensions (hook suspensions), hook clips with a lifting capacity from 3.2 to 50 tons.

Conditional designation	g/p, tn	Hook	Number of pulleys, pcs	Diameter of pulleys, pcs	Rope diameter	Weight, kg
Hook suspension- 0,5-4А-1-D120-D6,3	0,5	4А	1	120	6,3	4,5
Hook suspension - 1,0-7А-1-D200-D200-D81	1	7А	1	200	8,1	12
Hook suspension– 1,6-8А-1-D200-D9,7	1,6	8А	1	230	9,7	16
Hook suspension– 3,0-10А-1-D236-D11,5	2	10А	1	236	11,5	25,5
Hook suspension– 3,2-12А-1-D400-D14	3,2	12А	1	400	14	48
Hook suspension– 3,2-12А-1-D500-D14	3,2	12А	1	500	14	62
Hook suspension– 5,0-14А-1-D500-D16,5	5	14А	1	500	16,5	90
Hook suspension– 5,0-14А-1-D630-D16,5	5	14А	1	630	18	120
Hook suspension– 5,0-14А-2-D400-D14	5	14А	2	400	14	80
Hook suspension– 5,0-14А-2-D500-D14	5	14А	2	500	14	107
Hook suspension– 8,0-16А-2-D400-D15	8	16А	2	400	15	130
Hook suspension– 8,0-16А-2-D500-D15	8	16А	2	500	15	142
Hook suspension– 10,0-17А-2-D500-D16,5	10	17А	2	500	16,5	180
Hook suspension– 10,0-17А-2-D630-D18	10	17А	2	630	18	285
Hook suspension– 10,0-17Б-2-D500-D18	10	17Б	2	500	18	190
Hook suspension– 10,0-17Б-2-D500-D18	10	17Б	2	500	18	190
Hook suspension– 10,0-17А-3-D500-D16,5	10	17А	3	500	16,5	195
Hook suspension– 10,0-17А-3-D400-D16,5	10	17А	3	400	16,5	161
Hook suspension– 12,5-17А-3-D400-D16,5	12,5	17А	3	400	16,5	205
Hook suspension– 12,5-18А-3-D500-D16,5	12,5	18А	3	500	16,5	250
Hook suspension– 12,5-18А-3-D600-D18	12,5	18А	3	600	18	340
Hook suspension– 16,0-19А-3-D400-D16,5	16	19А	3	400	16,5	223
Hook suspension– 16,0-19А-3-D500-D16,5	16	19А	3	500	16,5	308
Hook suspension– 16,0-19А-3-D600-D18	16	19А	3	600	18	394
Hook suspension– 16,0-19А-4-D400-D16,5	16	19А	4	400	16,5	314
Hook suspension– 16,0-19А-4-D500-D16,5	16	19А	4	500	16,5	368
Hook suspension– 16,0-19А-4-D600-D18	16	19А	4	600	18	488
Hook suspension– 20,0-20А-3-D600-D21	20	20А	3	600	21	352
Hook suspension– 20,0-19А-4-D400-D16,5	20	19А	4	400	16,5	318
Hook suspension– 20,0-20А-4-D500-D16,5	20	20А	4	500	16,5	514
Hook suspension– 20,0-20А-4-D600-D18	20	20А	4	600	18	627
Hook suspension– 32,0-22А-4-D710-D22	32	22А	4	710	22	1016
Hook suspension– 32,0-22А-4-D810-D22	32	22А	4	810	22	1185
Hook suspension– 40,0-22А-4-D710-D23	40	22А	4	710	23	863
Hook suspension– 50,0-24А-5-D810-D28	50	24А	5	810	28	1963
Hook suspension– 50,0-24А-5-D900-D28	50	24А	5	900	28	2153
Hook suspension– 63,0-25А-6-D810-D31	63	25А	6	810	31	2320
Hook suspension– 80,0-26А-6-D810-D33	80	26А	6	810	33	2640
Hook suspension– 100,0-2-2-6-D810-D33	100	2-2	6	810	33	3100
Hook suspension– 125,0-3-2-6-D810-D36	125	3-2	6	810	36	5600
Hook suspension– 160,0-4-2-6-D810-D39,5	160	4-2	6	810	39,5	7200
Hook suspension– 200,0-5-2-6-D810-D42	200	5-2	6	810	42	12500
Hook suspension– 250,0-6-2-6-D810-D47	250	6-2	6	810	47	34000

You can find out more detailed information about the sizes of crane hook suspensions and their characteristics by contacting our specialists.
